Passive House Certified UK
Passive House Certified UK
Advantages:
- High energy efficiency
- No thermal bridge points
- Thinner insulating materials
- Slimmer facade designs
- Conserves resources
- Optimises costs
- Easy to install
VECO-Isolink®
The rod-shaped VECO-Isolink® bracket, made from a glass-fibre reinforced composite, has a metric connection thread onto which fixed and sliding point adapters can be fitted. Using injection technology, the Isolink® is set into a “rigid” position using an adhesive – eliminating the need for additional vertical or horizontal stiffening. GRP’s low thermal conductivity means the brackets have an effective thermal bridge effect of zero.
Glasfaserthermoanker inkl. Flügelwandhalter Gleitpunkt und Klemmfeder
Glasfaserthermoanker inkl. Flügelwandhalter Festpunkt und Klemmfeder
Edelstahl Zugband für Festpunkt, 1.4404 inkl. Adapter
VECO-Isolink® Accessories
VECO-Isolink® Accessories

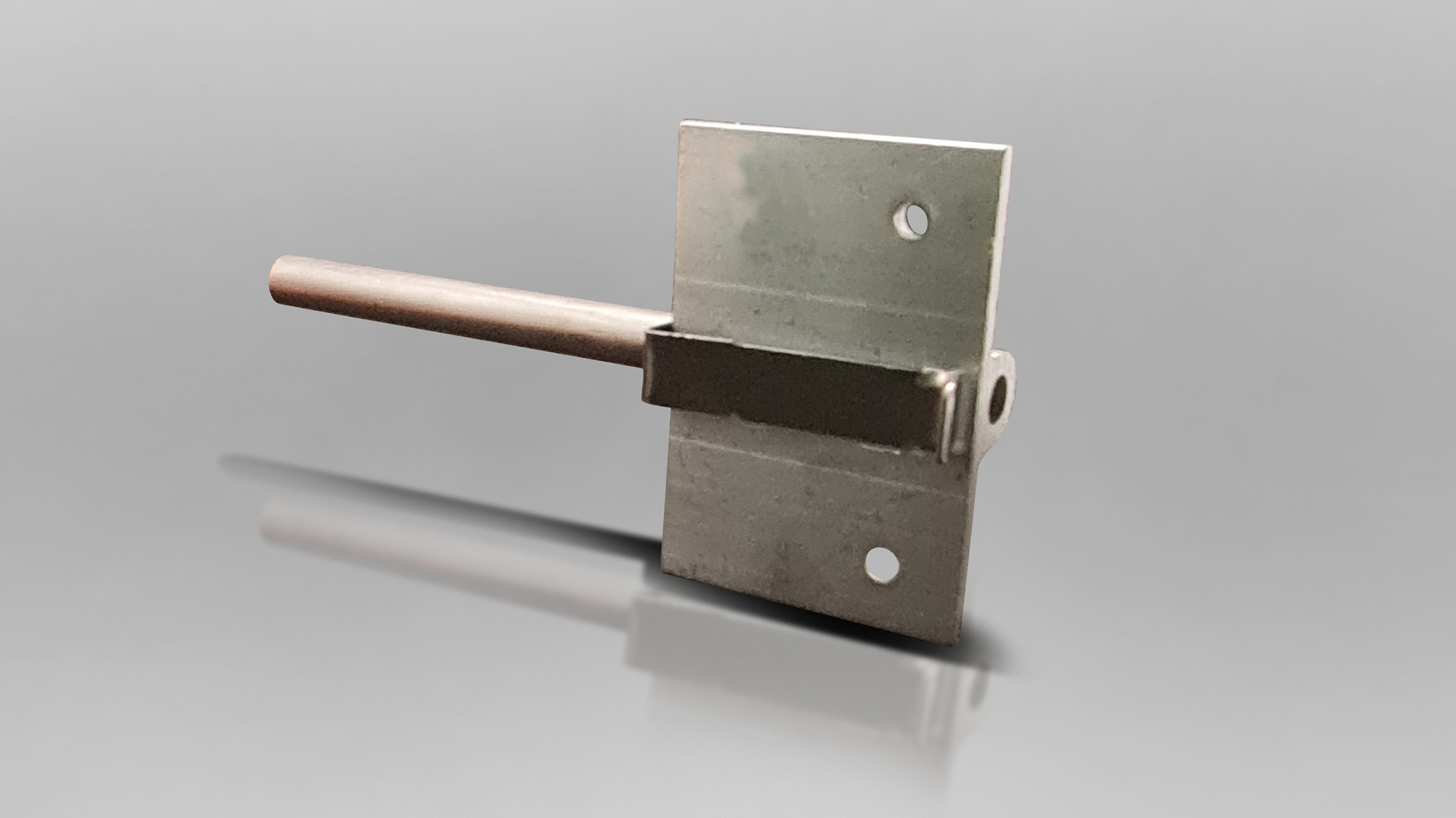

VECO-Isotherm
The VECO-Isotherm system is an assembled rod bracket component comprising a stainless steel rod sleeve, an anchor with connection thread and an adaptor for fixed and sliding point casements. It offers a very low thermal bridge point loss coefficient due the high quality and small cross-section of the materials used.
The system is constructed exclusively from non-combustible materials and is therefore suitable for use in buildings which are compliant with Fire Protection Standard A1.
Fassadendübel mit Anschlussgewinde für Isotherm Dübel mit Edelstahlschraube A4
Flügelwandhalter Festpunkt EN AW-6063 T66, Klemmfeder, Edelstahl Rundrohr
Flügelwandhalter Gleitpunkt EN AW-6063 T66, Klemmfeder, Edelstahl Rundrohr
Edelstahl Zugband für Festpunkt, 1.4404 inkl. Adapter
